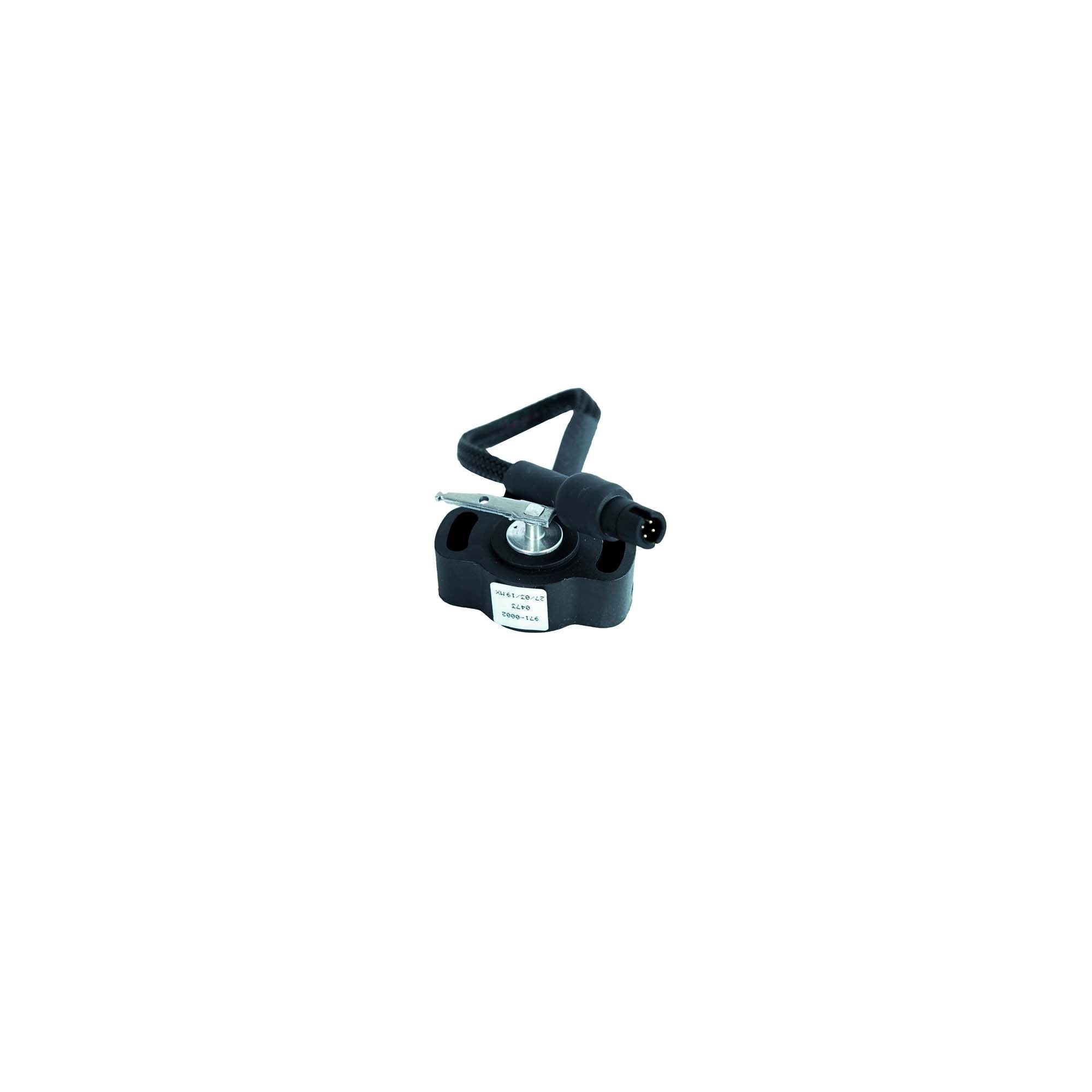

AIM Rotary Throttle Position Sensor — 1-Inch Linear Measurement. Real-Time Throttle Input Logging.
The AIM Rotary Throttle Position Sensor uses a string potentiometer to measure up to one inch of linear throttle travel with high precision. Connects to the AIM system via a standard 719 connector for direct integration with all AIM loggers and dashes. Perfect for monitoring exact throttle inputs during track sessions.
WHAT'S IN THE KIT
String potentiometer assembly (1-inch range)
4-pin 719-Male connector (AIM standard)
Mounting bracket for throttle cable attachment
Calibration documentation
SPECS Measurement type: String potentiometer (linear); Travel range: 0-1 inch (25.4mm); Connector: 4-pin 719-Male for AIM systems; Resolution: High-precision linear feedback; Response: Real-time throttle position to logger; Durability: Sealed construction for cockpit spray exposure
FAQ
How do I mount this to my throttle? Attach the cable bracket to your throttle linkage—as throttle moves, the string retracts and potentiometer output changes.
Can I calibrate this myself? Yes—documentation included for simple 2-point calibration at idle and full throttle.
What if my throttle has more than 1 inch of travel? Check your specific throttle—most modern automotive throttles are under 1 inch; larger travel requires custom configuration.
